FIBER CABLES

ExTell MicroCore Series | SM G.657A2 Micro-Tube ID LSZH | Dual-Flame Retardant | FO Cable

Model: ES2A2MCL10MX-FXXX-YW

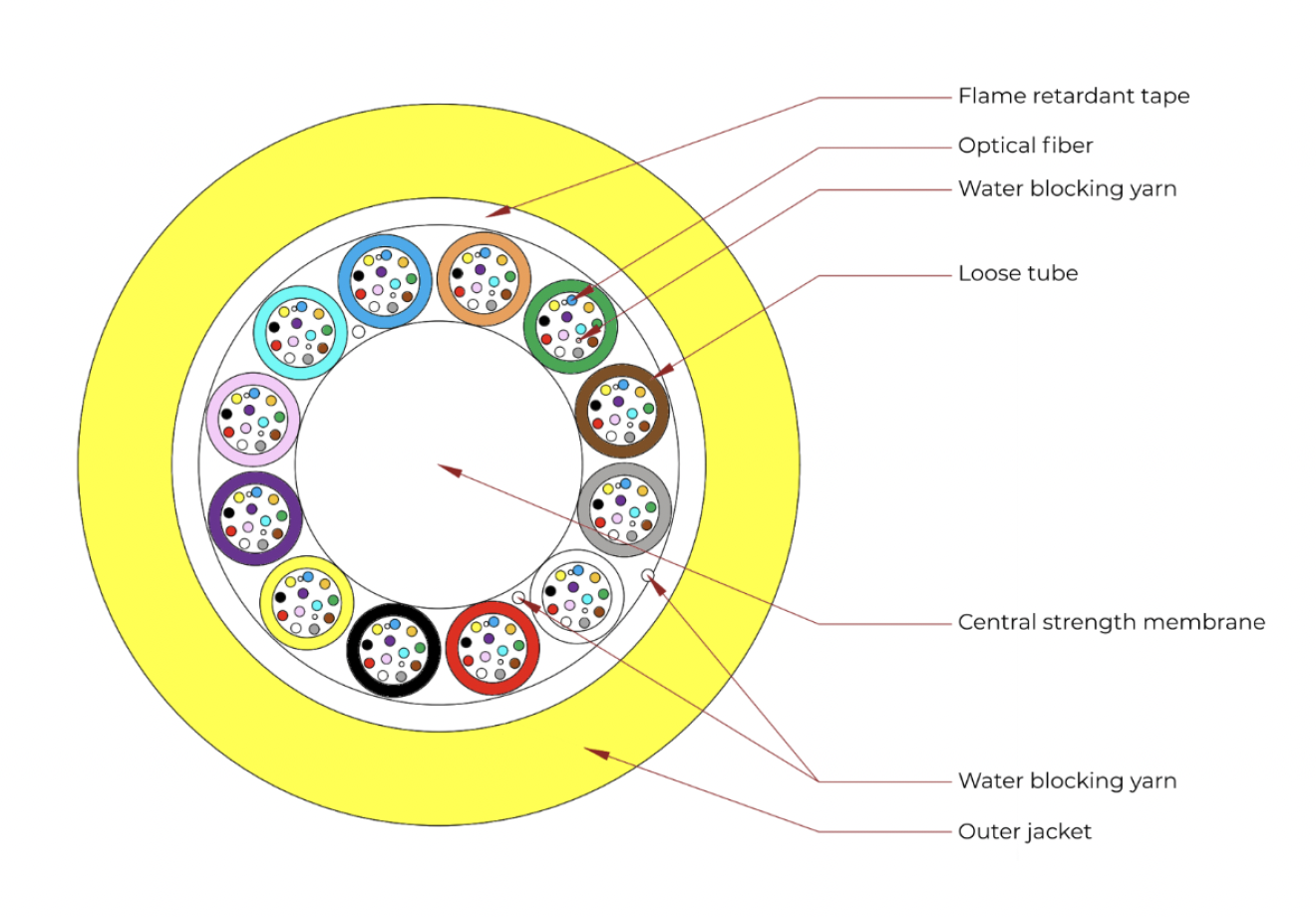

ExTell MicroCore Indoor Series represents the pinnacle of high-density indoor optical engineering. Designed for congested data center pathways, high-rise risers, and enterprise backbones, this series utilizes a micro-stranded architecture to achieve a significantly reduced footprint compared to traditional designs. By integrating ITU-T G.657.A2 bend-insensitive fibers, the MicroCore series ensures maximum signal integrity even in tight-radius routing environments. Encased in a high-safety Dual-Flame LSZH jacket, this cable provides superior life-safety performance and is fully non-metallic, ensuring total immunity to electromagnetic interference.

Key Features

• Space-Efficient Micro Architecture: 1.6 mm micro-loose tubes reduce cable diameter by up to 40%, maximizing conduit capacity.
• Superior Bend Performance: G.657.A2 fibers support tight bends (down to 7.5 mm radius) with minimal signal loss : ideal for indoor installations.
• Dry-Core Technology: Water-blocking yarns replace gels for clean, fast, and mess-free splicing
• Total Dielectric Construction: FRP strength member and non-metallic design ensure EMI/RFI immunity with no grounding required.
• Premier Fire Safety Compliance: LSZH sheath meets international flame-retardant and low-smoke standards
• Anti-Repellent Protection: Chemically treated jacket resists rodents and insects : no metal armor needed.
