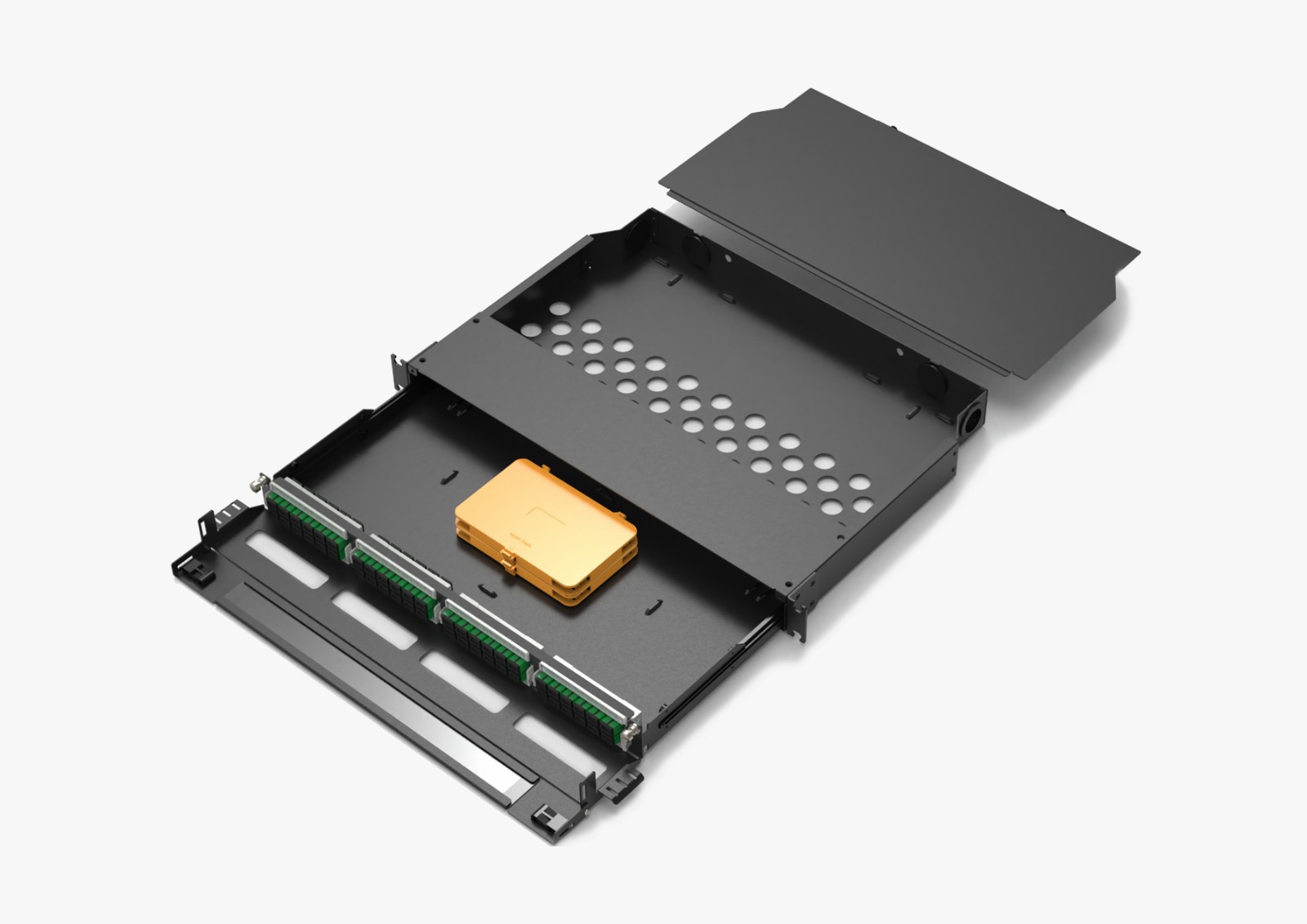

ExTell Axiom Travex Series 1U Fiber Optic Distribution Frame
Model: EAT1R1-04CP04HE-U-BK
The ExTell AxiomTravex Series is a purpose-engineered family of extendable-access rack-mount Fiber Distribution Frames (FDF), providing the operational flexibility of front-accessible fiber management within a secure, fixed enclosure. Available in 1U and 2U configurations, the series scales from 96F to 192F (LC Duplex), offering a practical and expandable solution for data centers and enterprise environments where maintenance must be performed without chassis removal.
Key Features
- Access Mechanism: Pullable and hanging bottom-box
- CP Class Adaptor Plate: Three CP-Class plate variants support LC Duplex / SC Simplex, FC Simplex, and ST Simplex connector types
- Splice Tray: HELIX Splice Tray Management system - upto 24F capacity per slot
- OPTIGUIDE-R: OPTIGUIDE-R Internal Cable Management Kit
Request Custom Quote
Detailed Specifications
| Parameter | Value |
|---|---|
| Rack Height | 1U |
| Total Splice Capacity | 96F |
| Compatible Splice Tray | HELIX (EST1-HE-24F) |
| Rack Compatibility | 19" EIA-310 / IEC 60297 |
| Chassis Material | SPCC Cold-Rolled Steel (1.2mm) |
| Surface Finish | Powder-Coated Black |
| Max Density | LC Duplex - 96F , SC Simplex - 48F |
