New
FIBER ACCESSORIES

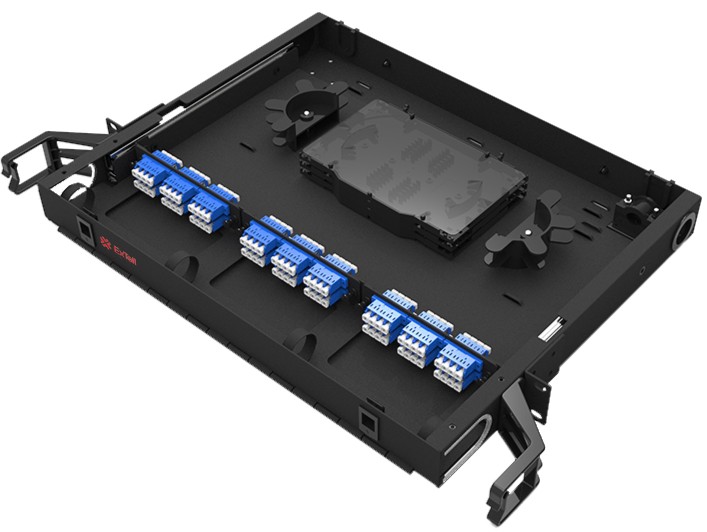

ExTell Axiom Glidex LG Series 1U Fiber Optic Patch Panel
Model: EAG1R1-03LG03MA-U-BK
ExTell AxiomGlidex LG Series is a premium range of rack-mount Fiber Distribution Frames (FDF) engineered for high-density splice and patch management in data centers and telecommunications environments. Featuring a precision Sliding-Rail Mechanism, the series provides technicians with unobstructed, full-extension access to internal components including splice trays and adapter panels enabling seamless maintenance without removing the chassis from the rack.
Key Features
- Opening Mechanism: Sliding Rail drawer with triple section stainless steel Slide Rail
- LGX Adaptor Plate
- Splice Tray: MAGNA Splice Tray Management System - low profile, upto 24F capacity per slot
- OPTIGUIDE-R: OPTIGUIDE-R Internal Cable Management Kit
Request Custom Quote
Detailed Specifications
| Parameter | Value |
|---|---|
| Rack Height | 1U |
| Total Splice Capacity | 72F |
| Compatible Splice Tray | Magna (EST1-MA-24F) |
| Rack Compatibility | 19" EIA-310 / IEC 60297 |
| Chassis Material | SPCC Cold-Rolled Steel (1.2mm) |
| Surface Finish | Powder-Coated Black |
| Max Density | LC Duplex - 72F , LC Quad - 72F , SC Simplex - 36F |
