NewIn Stock
UPS

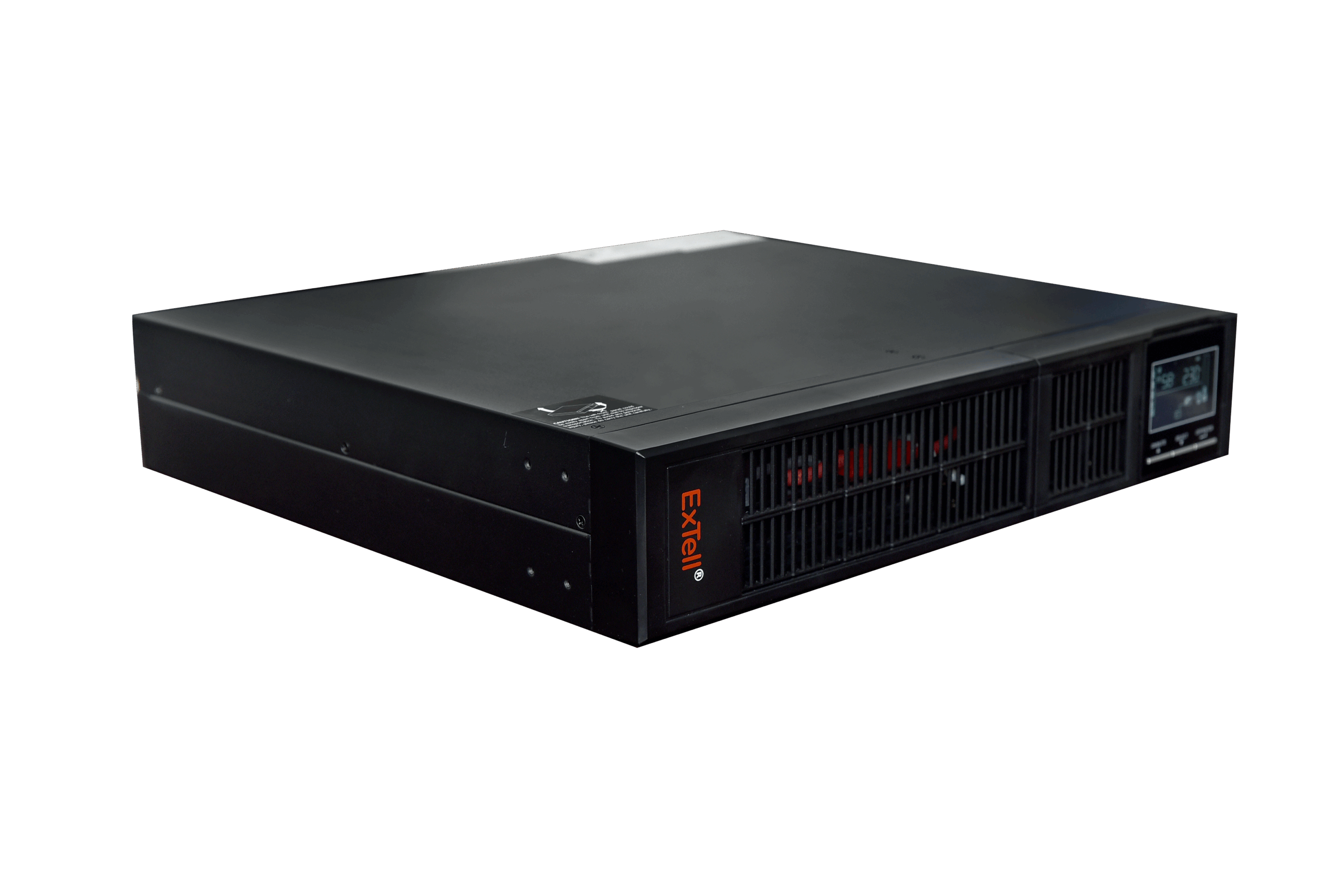

Galaxy Internal Rack Mount 1 To 3KVA, Online UPS
Model: E001GIR31
ExTell Galaxy is a premium range online Double Conversion Single Phase UPS with internal batteries and backup time expansion capacity and ideally suited for Corporate, Data Center, Electro-Mechanical applications. It provides seamless power backup with a pure sinewave output that ensure high protection for End user applications. Covered by ExTell extended warranty policy.
Key Features
- Short Lead Time
- Unity Power Factor
- Rack-Tower deployment compatible
- Expandable Backup Time
- Advanced Smart Management
Request Custom Quote
Detailed Specifications
| Parameter | Value |
|---|---|
| Model | E003SPIR31 |
| Capacity | 3000VA / 3000W |
| Nominal Voltage | 208/220/230/240Vac |
| Input Voltage Range | 110~300Vac (176~280Vac @ 100% load) |
| Frequency Range | 40~70Hz (50/60Hz Auto-Sensing) |
| Power Factor | 0.9PF |
| Output Voltage | 208/220/230/240Vac |
| Voltage Regulation | ± 1% |
| Output Frequency - Line Mode | 46~54Hz or 56~64Hz |
| Output Frequency - Battery Mode | (50/60 ± 0.1%)Hz |
| Crest Factor | 03:01 |
| Harmonic distortion (THDv) | ≤ 3% Linear load, ≤ 5% Non linear load |
| Transfer Time - AC Mode to Battery Mode | 0ms |
| Transfer Time - Inverter to Bypass | 4ms (Typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| AC Mode | 92% |
| Battery Mode | Beeping every 4 seconds |
| Battery Number | 6 |
| Capacity (Standard unit) | 9Ah / 12V |
| Typical Recharge Time | 4 hours (to 90% of full capacity) |
| Charging Voltage | 82.2 VDC ± 1% |
| Charging Current (Max) | 1A |
| LED Display | Line mode,Bat.mode, ECO mode, Bypass mode, Battery low voltage, Overload & UPS fault |
| LCD Display | Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time |
| Battery Low | Beeping every second |
| Overload | Beeping twice every second |
| Fault | Continously sounding |
| Dimension | 440 x 600 x 86.5 |
| Net Weight (kgs) | 26 |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C~55°C |
| Humidity Range | 20~95%RH @ 0~40°C (Non condensing) |
| Altitude | 1500m |
| Noise Level | <50dB at 1 Meter |
